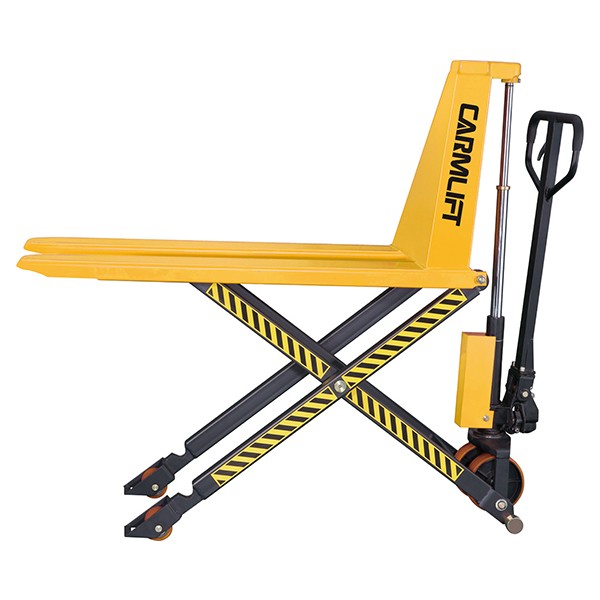

Scissor Lift Pallet Truck
Scissor lift pallet truck
Product Description

Ergonomically designed scissor lift pallet truck or called work positioner can lift and place your materials at the most productive working height safest for the worker, preveting back injuries caused by bending and lifting


Product Parameters

TEM/TYPE


CBY-HL

CBY-HL

Capacity Q

kg

1000

1500

Min.fork height h

mm

85

85

Max.fork height h1

mm

800

800

Size of fork es

mm

162*50

162*50

Length of fork l

mm

1140

1100

Width overall fork(adjust/fixed) b5

mm

520/680

520/680

N.W.

kg

105/112

118/125

Fork rollers

mm

Φ75*50

Φ75*50

Big wheel

mm

Φ180*50

Φ180*50
