Manual stacker

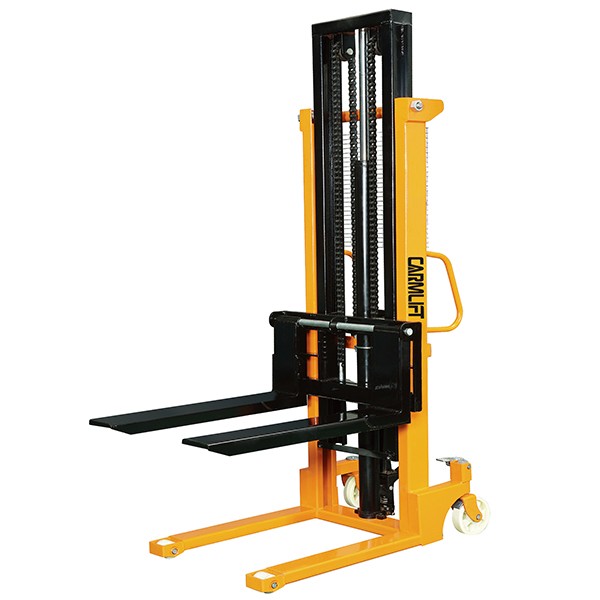

Manual stacker CTY EH
Product Description
Parameter
Model | CTY-EH1.0 | CTY-EH1.5 |
Capacity(kg) | 1000 | 1500 |
Max.lifting height(mm) | 2000/2500/3000 | 2000/2500/3000 |
Lowered height of forks(mm) | 90 | 90 |
Fork length (mm) | 900 | 900 |
Adjustable Width of fork(mm) | 320-740 | 360-740 |
Lifting speed(mm/stroke) | 20 | 14 |
lowering speed(mm/stroke) | Controllable | Controllable |
Outer width of front legs (mm) | 690 | 690 |
Operation power of crank(kg) | 24 | 32 |
Front wheel size(mm) | φ75x52 | φ74x70 |
Rear wheel size(mm) | φ180x50 | φ180x50 |
Overall size(mm) | 1410x780x1540 1410x780x1790 1410x780x2040 | 1410x780x1540 1410x780x1790 1410x780x2040 |
