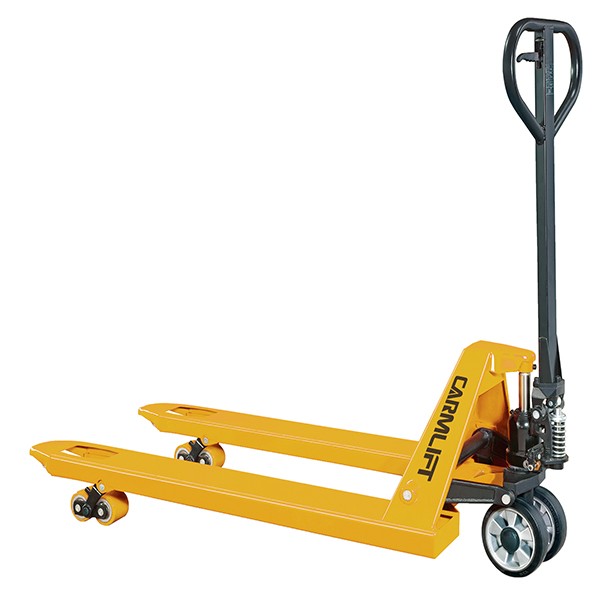

Professional and ideal storage aid for all variety of manual transport tasks over short distances in stores and warehouse as well as factory plants
Top class of pallet truck with excellent designs
Reliable, sturdy, torsion-resistant due to its extremely strong high quality steel profile Germany standard wagner painting system ensures best powder coating and painting quality
All pivots points are greased ensures excellent maneuverability with effortless steering the chromed bearing bushes and joints ensure quiet running properties and particularly long service lift
Product Parameters
Model: | CBY-DF2.0 | CBY-DF2.5 | CBY-DF3.0 |
Capacity(kg) | 2000 | 2500 | 3000 |
Min fork height(mm) | 75/85 | 75/85 | 75/85 |
Max fork height(mm) | 185/195 | 185/195 | 185/195 |
Lift height(mm) | 110 | 110 | 110 |
Single fork width(mm) | 160 | 160 | 160 |
Fork length(mm) | 1150/1220 | 1150/1220 | 1150/1220 |
Fork width(mm) | 550/685 | 550/685 | 550/685 |
Front wheel-single(mm) | 80x93/74x93 | 80x93/74x93 | 80x93/74x93 |
Front wheel-tandem(mm) | 74x70/80x70 | 74x70/80x70 | 74x70/80x70 |
Steering wheel(mm) | 180x50 | 180x50 | 180x50 |
Qty/20 feet container(pcs) | 180/144 | 180/144 | 180/144 |
Self weight(kg) | 73-92 | ||
